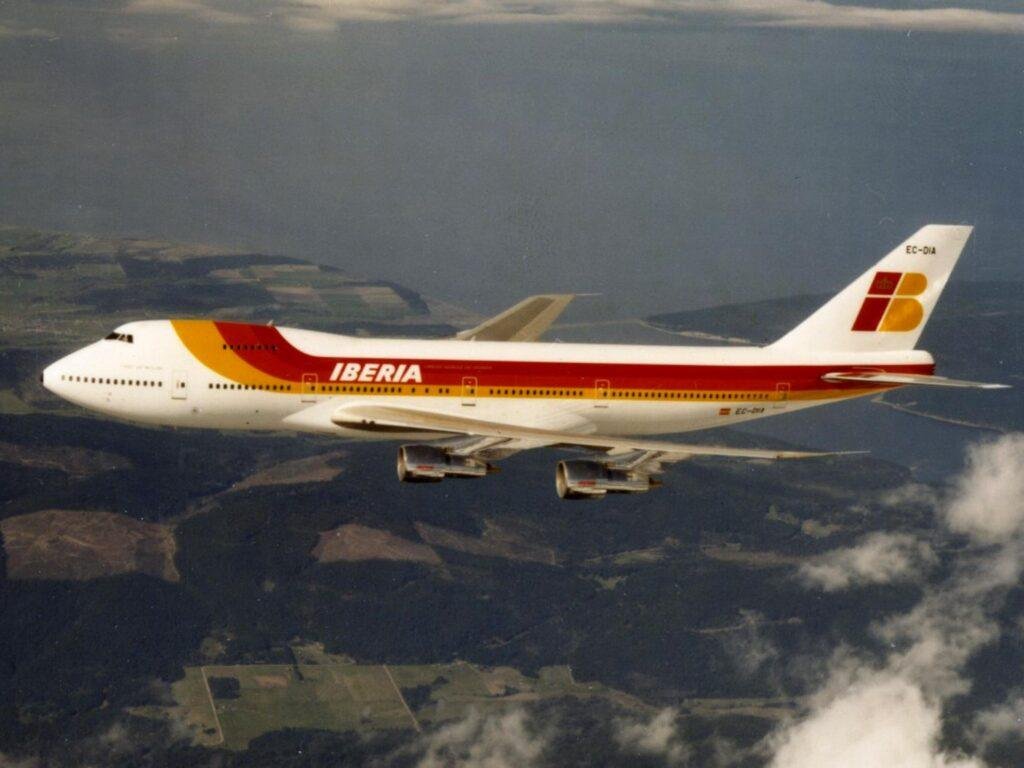

Boeing 747-200
Overview
The Boeing 747-200 is a commercial aircraft manufactured by Boeing, with the profile centered on its passenger role. It first flew in 1970-10-11 and entered service in 1971-02. The current production-status field is listed as In Production. The listed configuration provides for a crew of 3 and passenger capacity of 452. Power is provided by 4 Pratt & Whitney / General Electric / Rolls-Royce JT9D / CF6-50 / RB211 engines. Recorded dimensions include length 231.8 ft, wingspan 195.7 ft, height 64.7 ft. Maximum takeoff weight is listed as 833,000 lb. Listed performance includes cruise speed 480 kt. Its ICAO type designator is B742. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.
Quick Facts
Specifications
| ICAO Type Code | B742 |
|---|---|
| First Flight | Oct 11, 1970 |
| Introduction Date | Feb 1971 |
| Crew | 3 |
| Passenger Capacity | 452 |
| Length | 231.8 ft |
| Wingspan / Rotor Diameter | 195.7 ft |
| Height | 64.7 ft |
| Empty Weight | 375100 lb |
| Max Takeoff Weight | 833,000 lb |
| Cruise Speed | 480 kt |
| Engine Manufacturer | Pratt & Whitney / General Electric / Rolls-Royce |
| Engine Model | JT9D / CF6-50 / RB211 |
| Engine Count | 4 |
Data verification status: Verified
