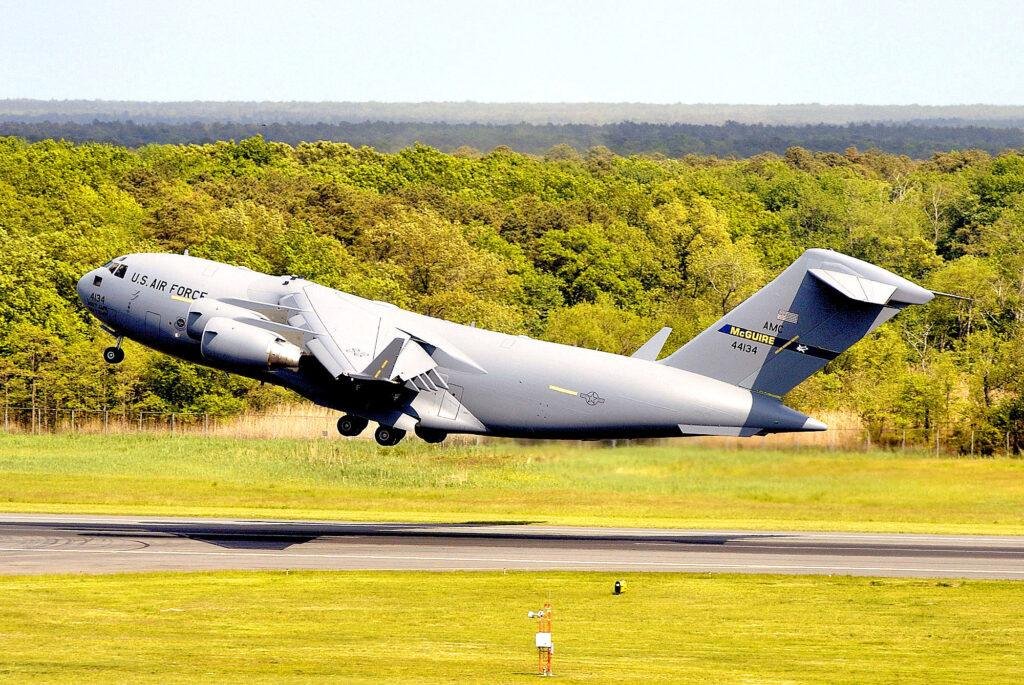

Boeing Defense C-17A Globemaster III
Overview
The Boeing Defense C-17A Globemaster III is a military aircraft manufactured by Boeing Defense, with the profile centered on its transport role. It first flew in 1991-09-15 and entered service in 1993-06-14. The current production-status field is listed as In Production. The listed crew requirement is 3. Power is provided by 2 Pratt & Whitney F117 engines. Recorded dimensions include length 174 ft, wingspan 169 ft 10 in, height 55.1 ft. Maximum takeoff weight is listed as 585,000 lb. Listed performance includes cruise speed ~450 kn kt, maximum speed 515 kt, range ~2400 nm with max payload nautical miles, service ceiling 45000 ft. Its ICAO type designator is C17. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.
Quick Facts
Specifications
| ICAO Type Code | C17 |
|---|---|
| Military Designation | C-17A |
| First Flight | Sep 15, 1991 |
| Introduction Date | Jun 14, 1993 |
| Crew | 3 |
| Length | 174 ft |
| Wingspan / Rotor Diameter | 169 ft 10 in |
| Height | 55.1 ft |
| Empty Weight | 282500 lb |
| Max Takeoff Weight | 585,000 lb |
| Cruise Speed | ~450 kn |
| Max Speed | 515 kt |
| Range | ~2400 nm with max payload |
| Service Ceiling | 45000 ft |
| Engine Manufacturer | Pratt & Whitney |
| Engine Model | F117 |
| Engine Count | 2 |
Data verification status: Partially Verified
Source: Boeing
