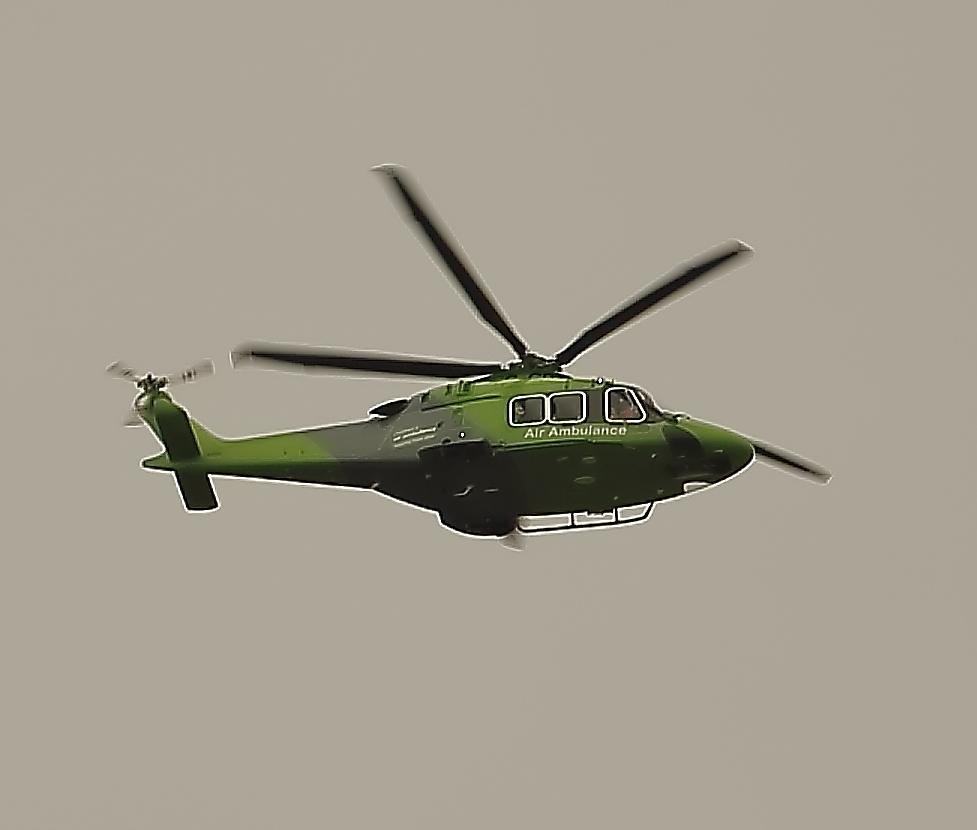

Leonardo Helicopters AW169
Overview
The Leonardo AW169 is a light-intermediate twin-engine helicopter for EMS, corporate, law enforcement, and utility missions. It offers a modern cockpit, flexible cabin, and performance between light twins and medium types. Entry into service expanded Leonardo’s civil product line between the AW109 and AW139. Operators value its speed and cabin configurability.
Quick Facts
Range
440 nm
Cruise Speed
140 kt
Max Speed
160 kt
Specifications
| ICAO Type Code | A169 |
|---|---|
| Length | 48 ft 5 in |
| Wingspan / Rotor Diameter | 40 ft 4 in rotor diameter |
| Height | 13 ft 11 in |
| Empty Weight | 6070 lb |
| Max Takeoff Weight | 10582 lb |
| Cruise Speed | 140 kt |
| Max Speed | 160 kt |
| Range | 440 nm |
| Service Ceiling | 15000 ft |
| Engine Manufacturer | Pratt & Whitney Canada |
| Engine Model | PW210A |
| Engine Count | 2 |
Data verification status: Partially Verified
Source: Leonardo — AW169
