Expanded Profile

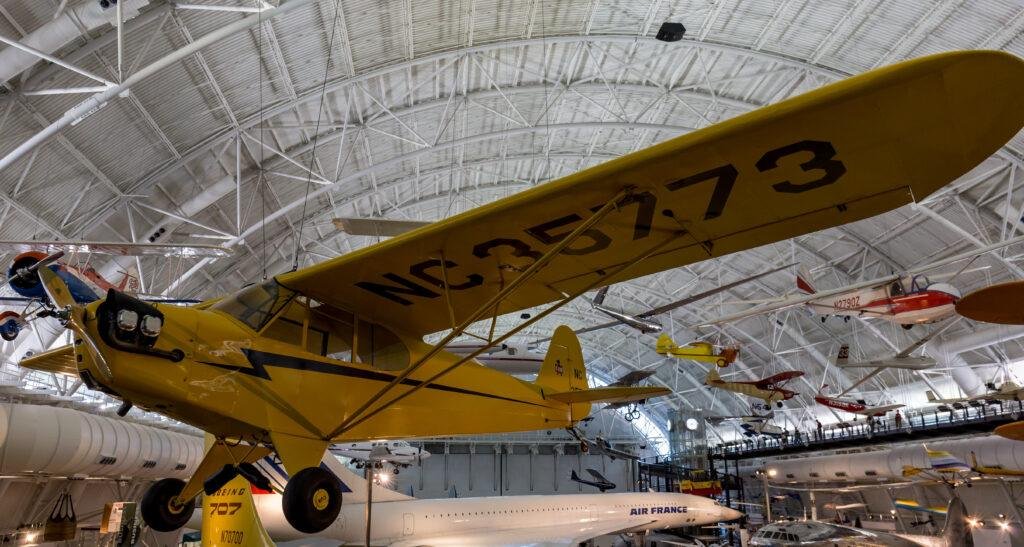

Piper J-3 Cub

Overview

The Piper J-3 Cub is a general aviation aircraft manufactured by Piper, with the profile centered on its general aviation role. The current production-status field is listed as In Production. The profile records 1 engine. Its ICAO type designator is J3. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.

Quick Facts

Range 191.2 nm
Cruise Speed 65.2 kt
Max Speed 75.6 kt

Specifications

ICAO Type CodeJ3
Length22 ft 5 in
Wingspan / Rotor Diameter35 ft 3 in
Height6 ft 8 in
Empty Weight765 lb
Max Takeoff Weight1220 lb
Cruise Speed65.2 kt
Max Speed75.6 kt
Range191.2 nm
Service Ceiling11500 ft
Engine ManufacturerContinental
Engine ModelA-65/C-65 series (J3C-65 basis)
Engine Count1

Data verification status: Partially Verified

Source: Piper Aircraft — heritage / Cub
