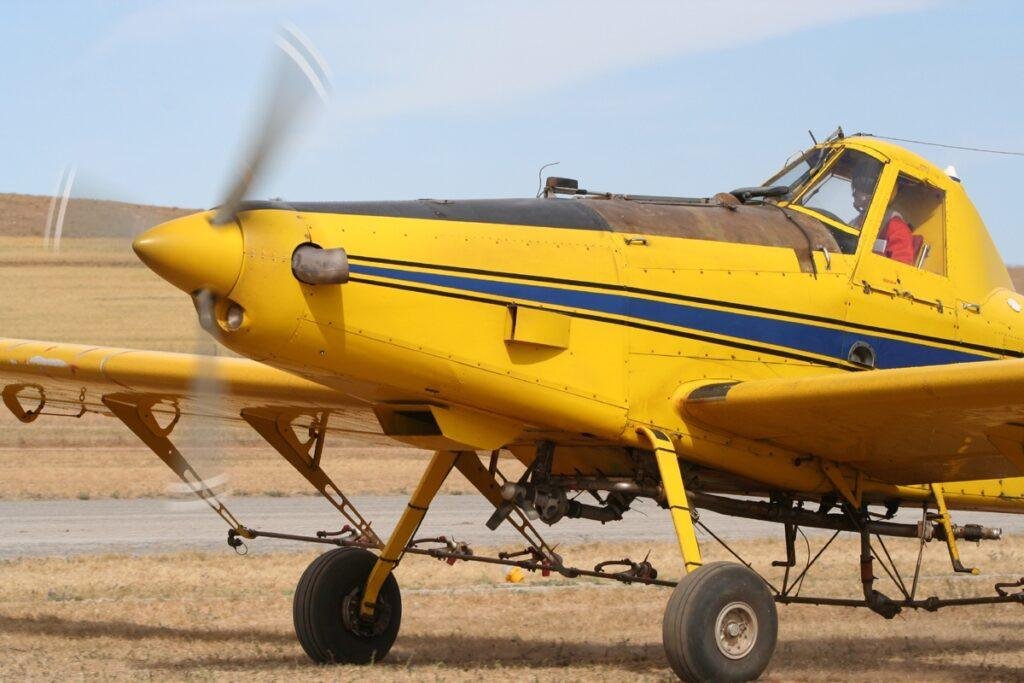

Air Tractor AT-502
Overview
The Air Tractor AT-502 is a general aviation aircraft manufactured by Air Tractor, with the profile centered on its general aviation role. It first flew in 1992-02-01 and entered service in 1992. The current production-status field is listed as In Production. The listed crew requirement is 1. Power is provided by 1 Pratt & Whitney Canada PT6A-45R (1100 shp) engine. Recorded dimensions include length 32 ft 6 in, wingspan 50 ft 0 in, height 9 ft 10 in. Maximum takeoff weight is listed as 9600 lb. Listed performance includes maximum speed 191 kt. Its ICAO type designator is AT5T. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.
Quick Facts
Specifications
| ICAO Type Code | AT5T |
|---|---|
| First Flight | Feb 1, 1992 |
| Introduction Date | 1992 |
| Crew | 1 |
| Length | 32 ft 6 in |
| Wingspan / Rotor Diameter | 50 ft 0 in |
| Height | 9 ft 10 in |
| Empty Weight | 4650 lb |
| Max Takeoff Weight | 9600 lb |
| Max Speed | 191 kt |
| Engine Manufacturer | Pratt & Whitney Canada |
| Engine Model | PT6A-45R (1100 shp) |
| Engine Count | 1 |
Data verification status: Partially Verified
