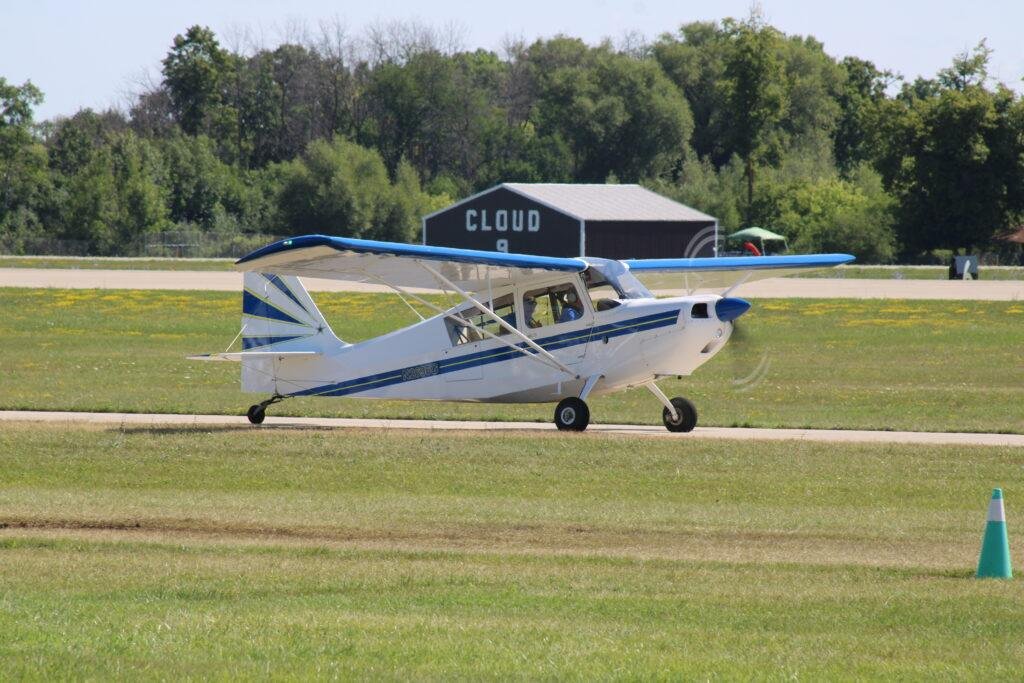

American Champion 7ECA Citabria
Overview
The American Champion 7ECA Citabria is a general aviation aircraft manufactured by American Champion, with the profile centered on its general aviation role. Its recorded introduction date is 1964. The current production-status field is listed as In Production. The listed configuration provides for a crew of 1 and passenger capacity of 1. Power is provided by 1 Lycoming O-235 engine. Recorded dimensions include length 22 ft 1 in, wingspan 33 ft 6 in, height 7 ft 7 in. Maximum takeoff weight is listed as 1750. Listed performance includes service ceiling 11500 ft. Its ICAO type designator is CH7A. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.
Quick Facts
Specifications
| ICAO Type Code | CH7A |
|---|---|
| Introduction Date | 1964 |
| Crew | 1 |
| Passenger Capacity | 1 |
| Length | 22 ft 1 in |
| Wingspan / Rotor Diameter | 33 ft 6 in |
| Height | 7 ft 7 in |
| Empty Weight | 1120 lb |
| Max Takeoff Weight | 1750 lb |
| Service Ceiling | 11500 ft |
| Engine Manufacturer | Lycoming |
| Engine Model | O-235 |
| Engine Count | 1 |
Data verification status: Verified
