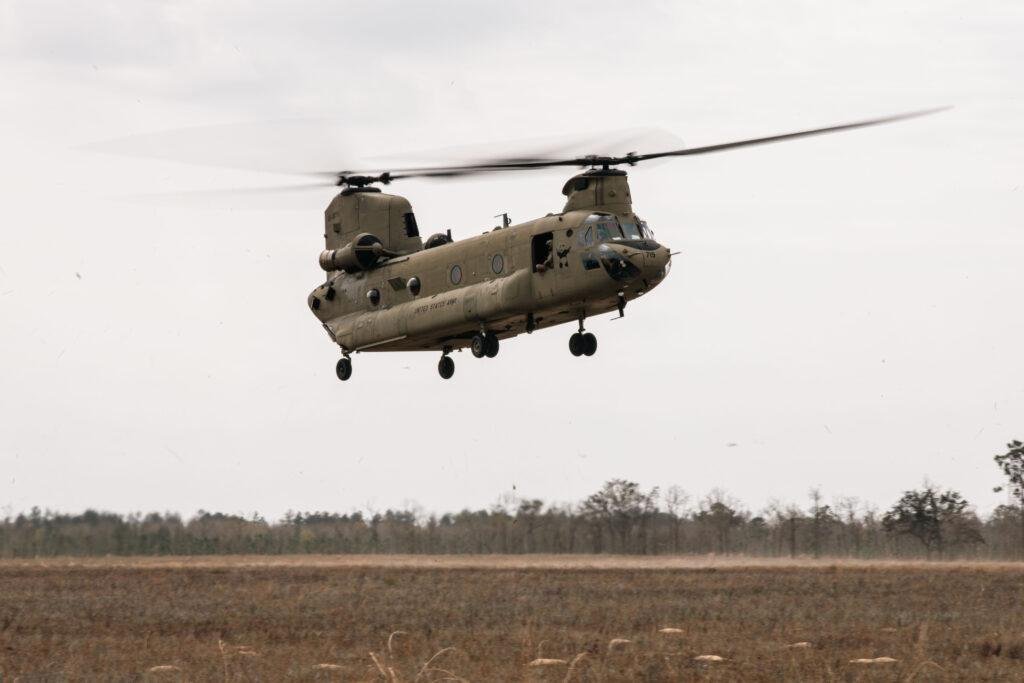

Boeing Defense CH-47D Chinook
Overview
The Boeing Defense CH-47D Chinook is a military aircraft manufactured by Boeing Defense, with the profile centered on its military helicopter role. It first flew in 1961-09-21 and entered service in 1982. The current production-status field is listed as In Production. The listed configuration provides for a crew of 3 and passenger capacity of 44. Power is provided by 2 Honeywell (AlliedSignal) T55-L-712 engines. Recorded dimensions include length 51 ft 0 in, wingspan 60 ft 0 in, height 18 ft 9 in. Maximum takeoff weight is listed as 50000. Listed performance includes maximum speed 142 kt, range 300 nautical miles. Its ICAO type designator is H47. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.
Quick Facts
Specifications
| ICAO Type Code | H47 |
|---|---|
| Military Designation | CH-47D |
| First Flight | Sep 21, 1961 |
| Introduction Date | 1982 |
| Crew | 3 |
| Passenger Capacity | 44 |
| Length | 51 ft 0 in |
| Wingspan / Rotor Diameter | 60 ft 0 in |
| Height | 18 ft 9 in |
| Max Takeoff Weight | 50000 lb |
| Max Speed | 142 kt |
| Range | 300 nm |
| Engine Manufacturer | Honeywell (AlliedSignal) |
| Engine Model | T55-L-712 |
| Engine Count | 2 |
Data verification status: Verified
Source: ICAO Aircraft Type Designators
