MH-139 Grey Wolf
Overview

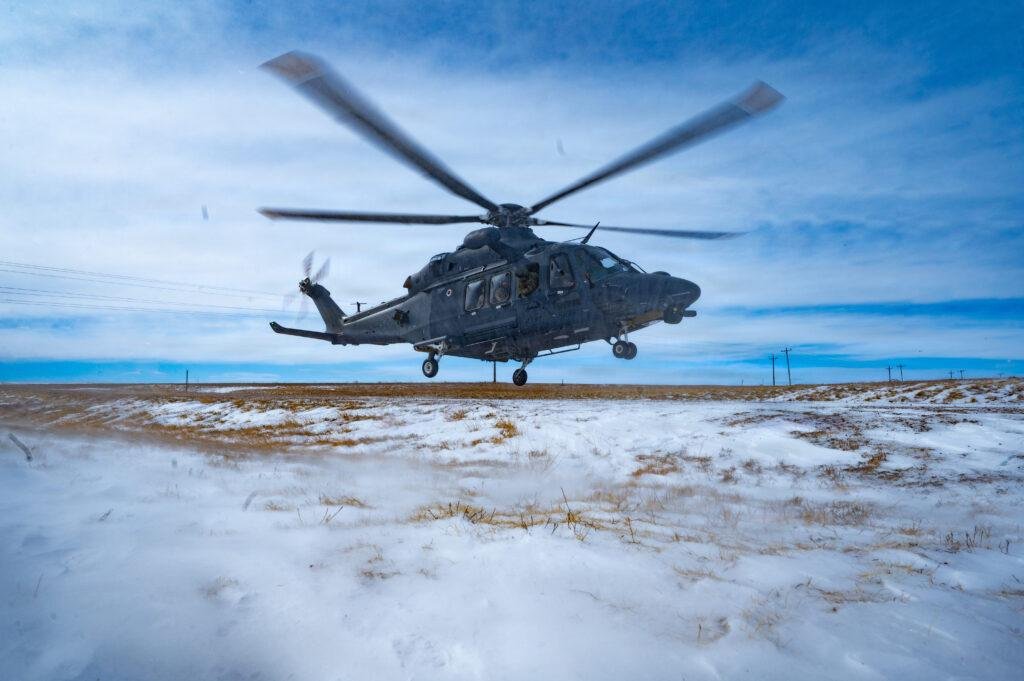

The MH-139 Grey Wolf is a military aircraft manufactured by Boeing, with the profile centered on its security / utility helicopter role. Its recorded first flight is 2019-06-24. The current production-status field is listed as In Production. The listed configuration provides for a crew of 4 and passenger capacity of 11. Power is provided by 2 Pratt & Whitney Canada PT6C engines. Recorded dimensions include length 54.7 ft, height 16.3 ft. Maximum takeoff weight is listed as 15,432 lb. Listed performance includes cruise speed ~140 kn kt, maximum speed 167 kt, range ~440 nm nautical miles, service ceiling 20,000 ft. Its ICAO type designator is H139. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.
Quick Facts
Specifications
| ICAO Type Code | H139 |
|---|---|
| Military Designation | MH-139 |
| First Flight | Jun 24, 2019 |
| Crew | 4 |
| Passenger Capacity | 11 |
| Length | 54.7 ft |
| Height | 16.3 ft |
| Max Takeoff Weight | 15,432 lb |
| Cruise Speed | ~140 kn |
| Max Speed | 167 kt |
| Range | ~440 nm |
| Service Ceiling | 20,000 ft |
| Engine Manufacturer | Pratt & Whitney Canada |
| Engine Model | PT6C |
| Engine Count | 2 |
Data verification status: Partially Verified
Source: U.S. Air Force
