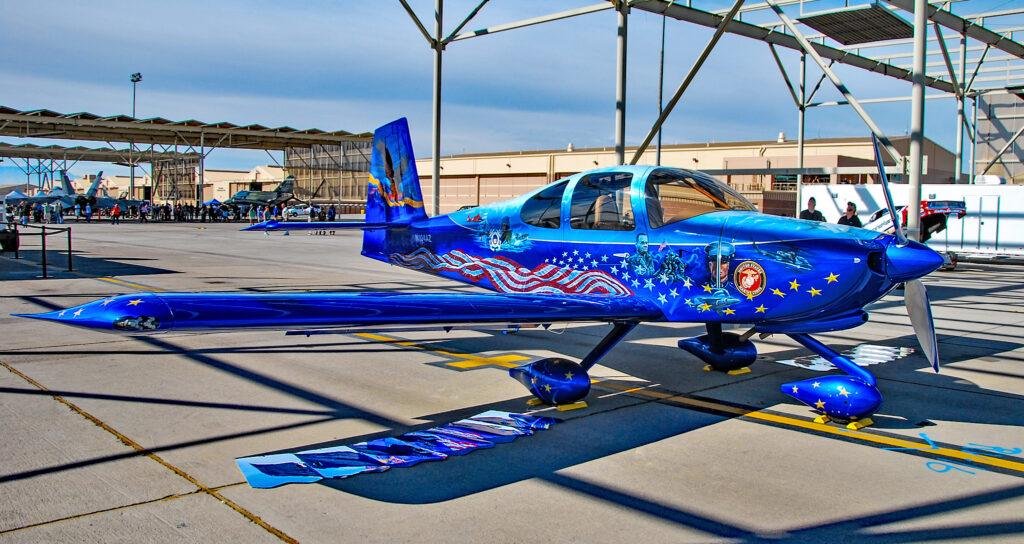

Vans Aircraft RV-10
Overview
The Vans Aircraft RV-10 is a general aviation aircraft manufactured by Vans Aircraft, with the profile centered on its personal/training/utility role. The current production-status field is listed as In Production. The profile records 1 engine. Its ICAO type designator is RV10. Figures shown here describe the listed type or configuration and may vary by sub-variant, certification basis, or operator fit.
Quick Facts
Range
825 nm
Cruise Speed
171 kt
Max Speed
201 kt
Specifications
| ICAO Type Code | RV10 |
|---|---|
| Length | 24 ft 5 in |
| Wingspan / Rotor Diameter | 31 ft 9 in |
| Height | 8 ft 5 in |
| Empty Weight | 1600 lb |
| Max Takeoff Weight | 2700 lb |
| Cruise Speed | 171 kt |
| Max Speed | 201 kt |
| Range | 825 nm |
| Service Ceiling | 20000 ft |
| Engine Manufacturer | Lycoming |
| Engine Model | IO-540 series |
| Engine Count | 1 |
Data verification status: Partially Verified
Source: Van's Aircraft — RV-10
